Advantage
1. Use High-end die-cast aluminum forming, with high-end, atmosphere, and oxidation treatment design appearance, Impact and high temperature resistance, excellent corrosion resistance.
2. High lumen LED chips: Philips 3030. more than 130LM/watt.
3. With intelligent power regulation, automatic judgment of weather, reasonable planning of charge and discharge.
4. With IP65 waterproof IP grade, can work in water in a short time.
5. Very easy disassemble, install, transportation and maintain, save freight charge and labor cost.
6. Lamp color be riotous with color.
Design specification

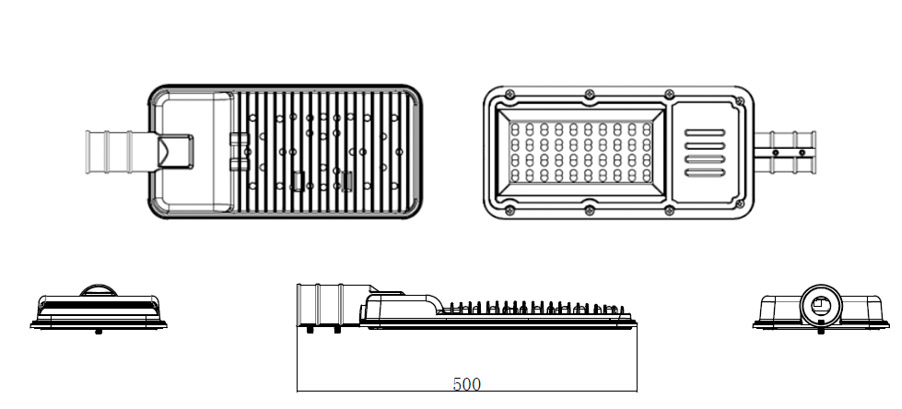

Dimension (mm)
Parameters（AC)
|
LED lamp power |
20W |
30W |
40W |
50W |
60W |
|
LED type |
Philips |
Philips |
Philips |
Philips |
Philips |
|
Lighting mode |
Driver |
Driver |
Driver |
Driver |
Driver |
|
Light Luminous |
120LM/W |
120LM/W |
120LM/W |
120LM/W |
120LM/W |
|
LED efficiency |
>90% |
>90% |
>90% |
>90% |
>90% |
|
IP grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Mount sleeve diameter |
Φ65mm |
Φ65mm |
Φ65mm |
Φ65mm |
Φ65mm |
|
Input voltage |
100-250V |
100-250V |
100-250V |
100-250V |
100-250V |
|
LED lamp size |
500*200*63mm |
500*200*63mm |
500*200*63mm |
500*200*63mm |
500*200*63mm |
|
Lamp weight |
2.3kgs |
2.3kgs |
2.3kgs |
2.3kgs |
2.3kgs |
|
Package size |
51.5*15.5*22.5cm |
51.5*15.5*22.5cm |
51.5*15.5*22.5cm |
51.5*15.5*22.5cm |
51.5*15.5*22.5cm |
|
Package weight |
2.4kgs |
2.4kgs |
2.4kgs |
2.4kgs |
2.4kgs |
The packaging
The required parts
The required parts

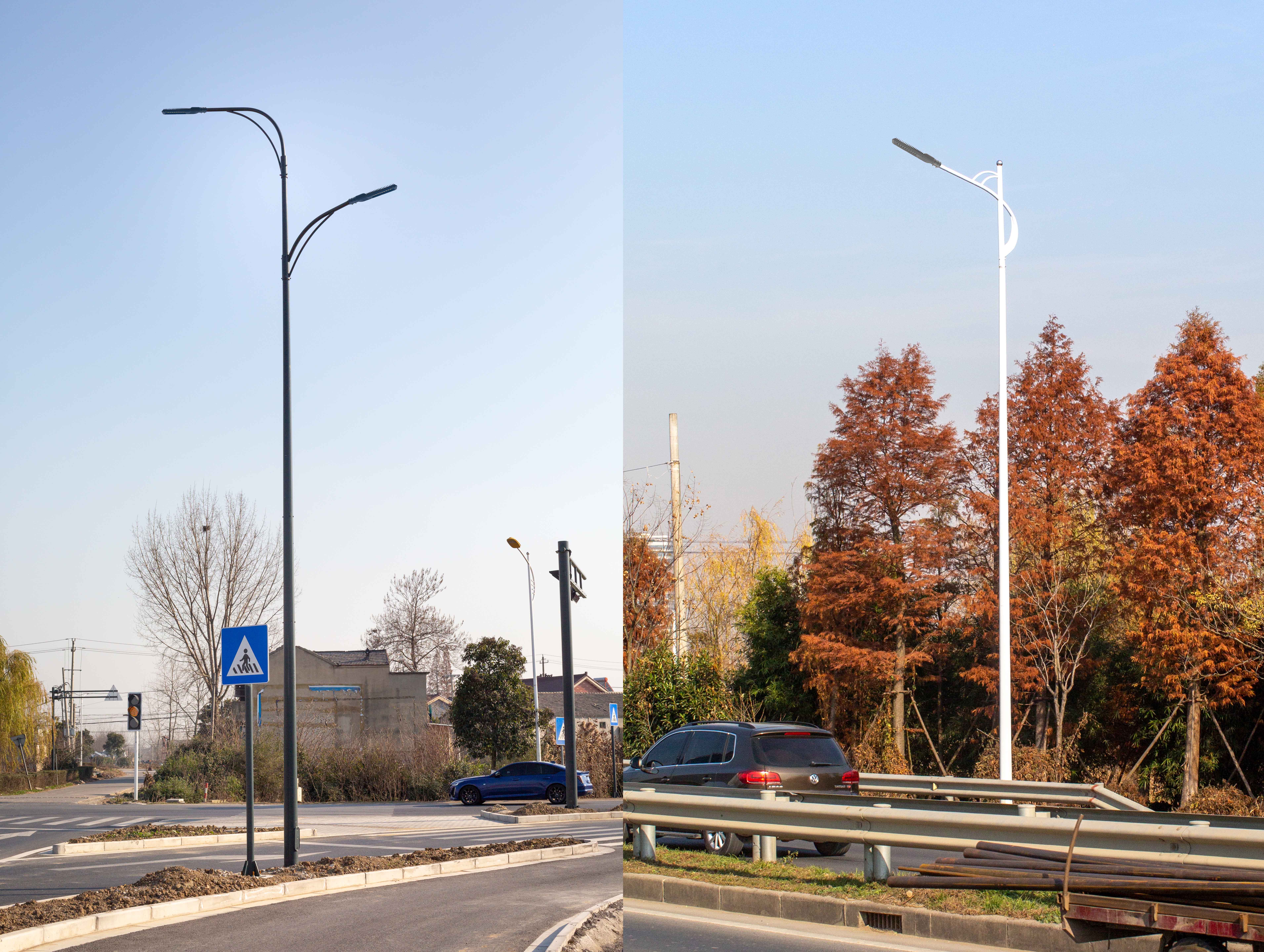

Application scene
