Product Features：

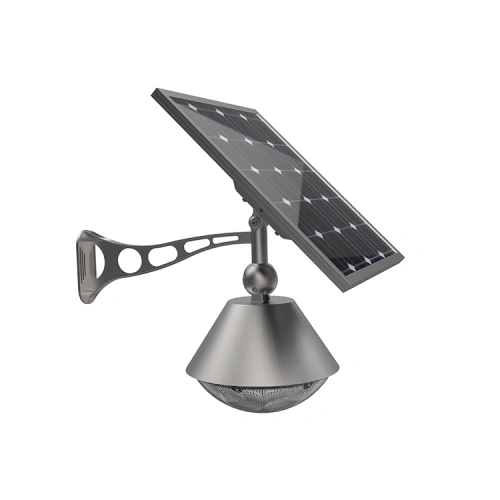

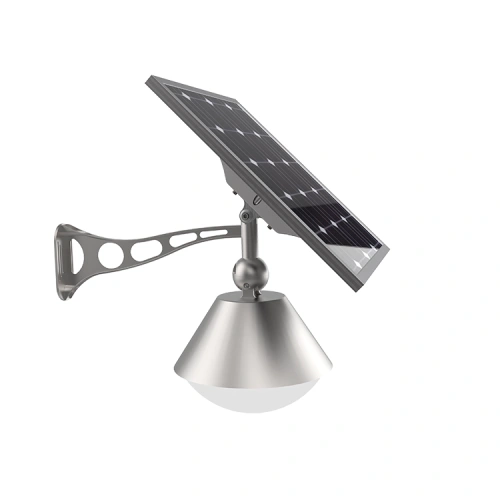

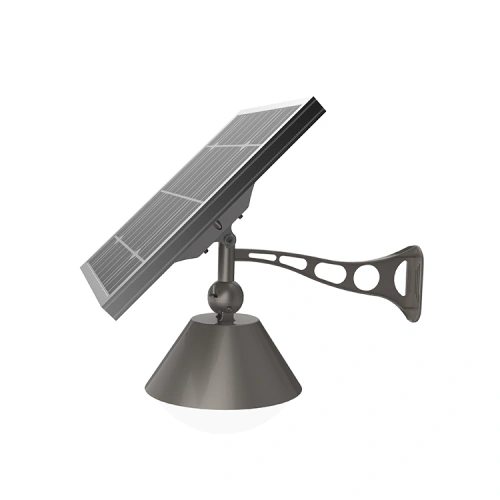

1. A New concept of Solar Garden Light、wall light；the whole light is cast by magnesium aluminum alloy，Solar Panel、PIR controller，Microwave controller、Lithium-ion battery ,high-brightness light source .Creation for energy saving.

2. Use High-end die-cast aluminum forming, with high-end, atmosphere, and oxidation treatment design appearance, Impact and high temperature resistance, excellent corrosion resistance.

3. All structural parts of the Solar Street Light are cast by mold ,It is through the car, grinding, drilling, milling, punching CNC machining and other cumbersome processes.

4. The technology of controller：When people close to the light,it will light up as 100%，after people left it will light up as 30%,using intelligent lighting controll mode.

5. High lumen LED chips: Philips 3030. more than 100LM/watt.

6. With IP65 waterproof IP grade, can work in water in a short time.

7. Very easy disassemble, install, transportation and maintain, save freight charge and labor cost.

8. Lamp color be riotous with color.

Product Description:

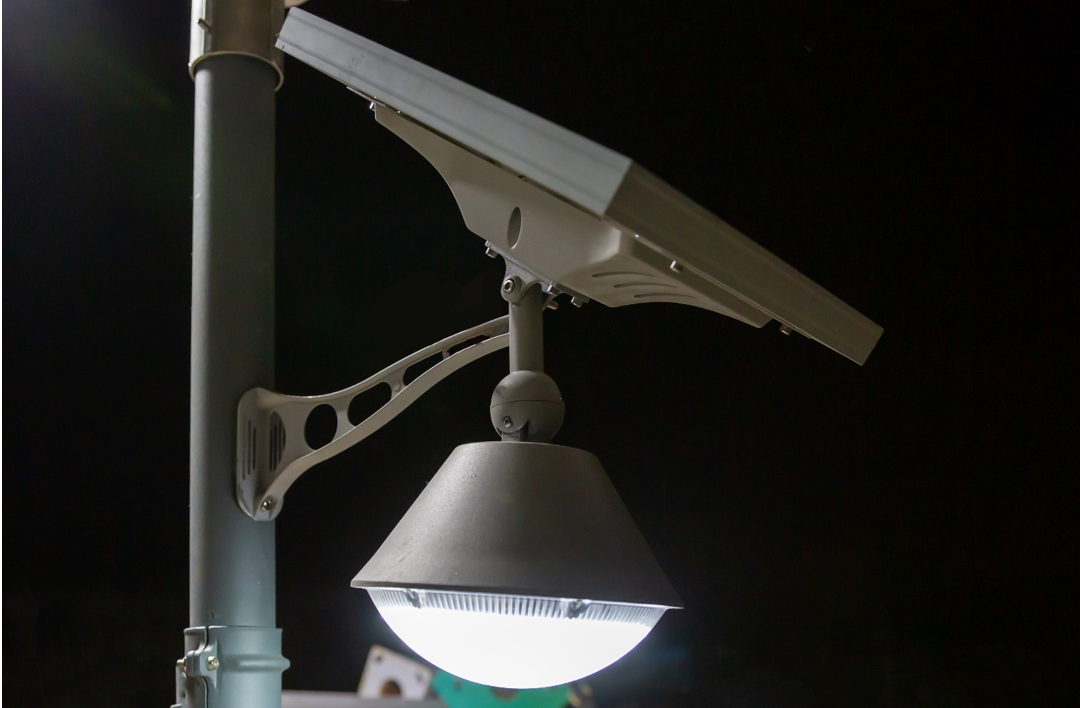

Intelligent Show

The Technology Of Controller

When people close to the light ,it will light up as 100%，after people left it will light up as 30%, using intelligent lighting control mode.

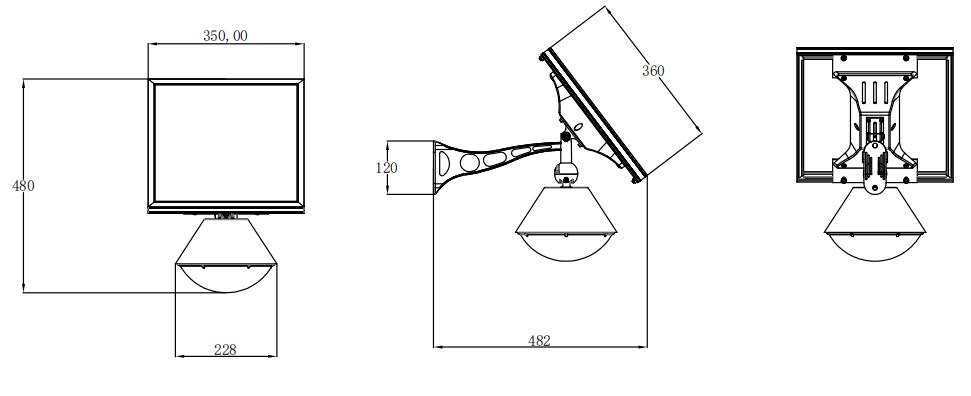

Dimension (mm)

Solar modules can be configured for customers to change, customize.

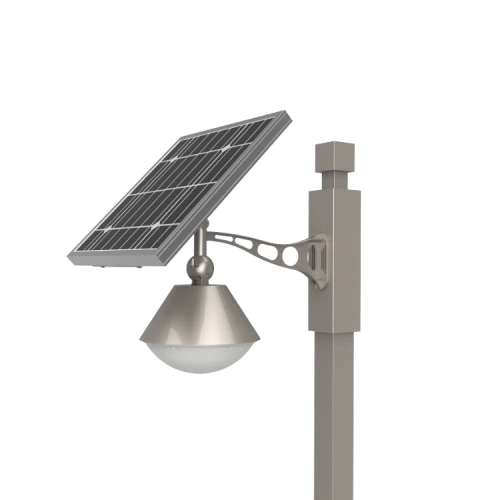

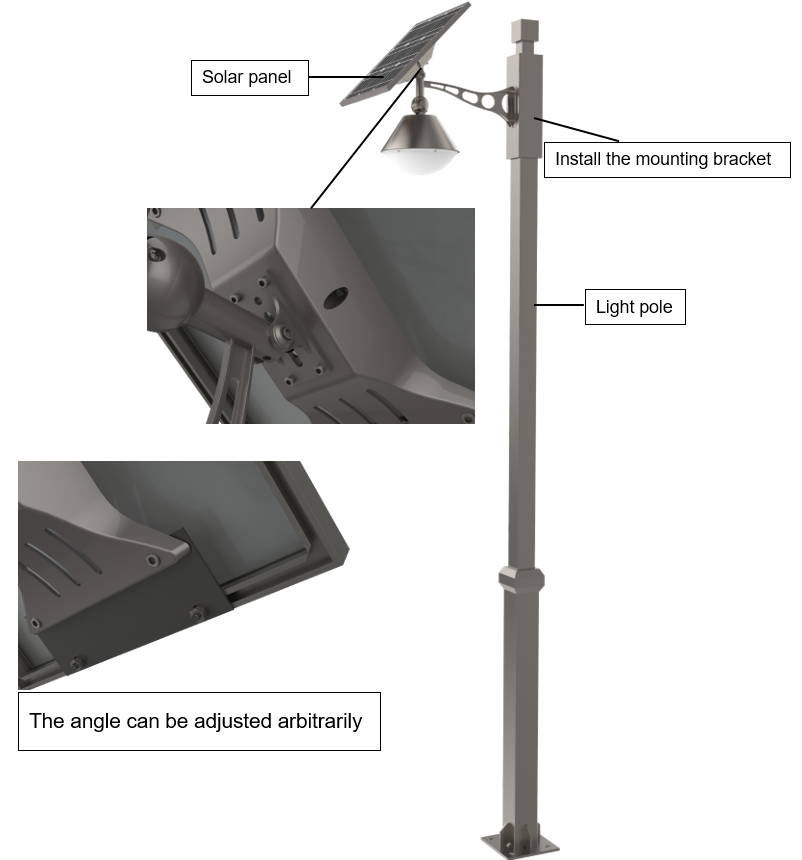

Installation Mode

Parameters

lamp power	10W	15W	20W
Input voltage	12v	12v	12v
Operating environment	-40℃– 60℃	-40℃– 60℃	-40℃– 60℃
IP	IP65	IP65	IP65
Luminous flux	120lm/W	120lm/W	120lm/W
Color temperature	3000K-6000K	3000K-6000K	3000K-6000K
Connection mode	Waterproof plug	Waterproof plug	Waterproof plug
Light source	PHILLIPS	PHILLIPS	PHILLIPS
5 time decay	15%	15%	15%
Guarantee period	3years	3years	3years
Lamp weights	4.75kg	4.75kg	4.75kg
Size	42.5*34.5*37cm	42.5*34.5*37cm	42.5*34.5*37cm

Light Distribution

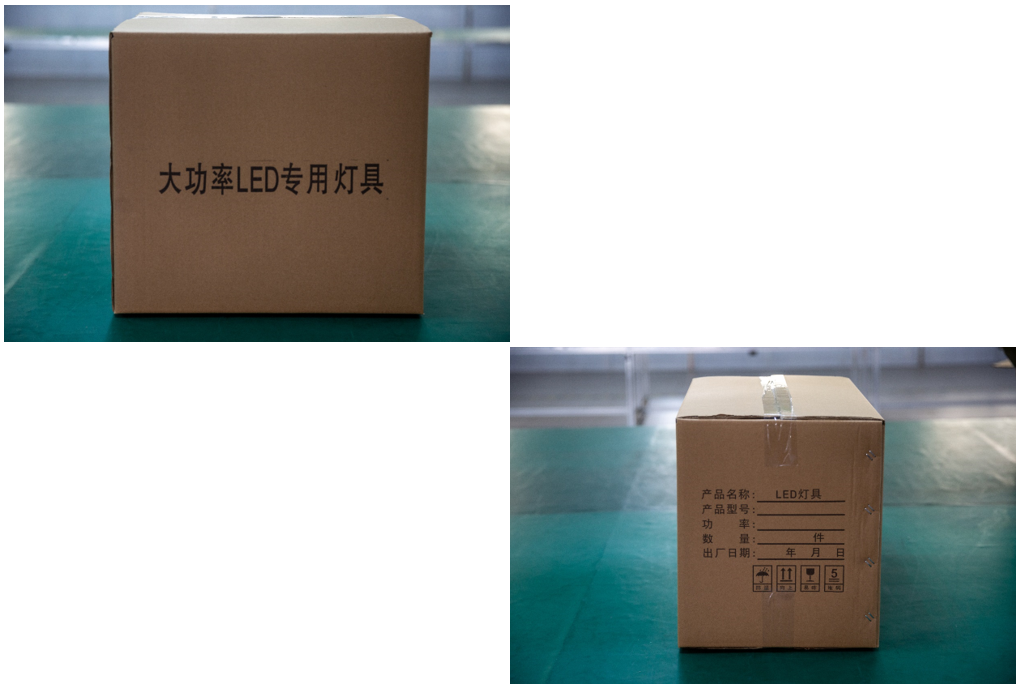

Package details

Applicable Place
