Product description

The desion absorbs the essence and evolution process ofthe previous generation of the two generation and the three

or four generation, and integrates the most green resource portfolio at present. Different from the previous landscape projector, it has the advantages of simple structure, energy saving, flexibilitv, simplicity, low light attenuation. high light efficiency and more novel technologies.

CHOK-100 adopts excellent practical patent control technology The light source angle can be adjusted by 25 degrees, and the movement perfectly meets the requirements of linear light distribution of buildings with different height angles. The application of chk10 technology has more advantages in cost performance and 1ow maintenance. It adopts the integrated adjustable angle assembly method, and has 1ong service life. And its heat dissipation is superior at the same time.

Advantges

Start continuous structure design, simple, stylish, convenient and practical.
National standard module. high luminous efficiency, 130LM per watt

Using PIR motion sensor control technology can eliminate eyesight and light fatigue when the vehicle enters the tunnel.

The high-conductivity heat dissipation of 107 aluminum profile effectively prolongs the service life of the tunnel lamp.
Color temperature: 3500K-6000K

Waterproof structure: IP65 Drive part IP67

Input voltage: 24V, 110V, 220V

Power: 3-6W

Color rendering index: 270

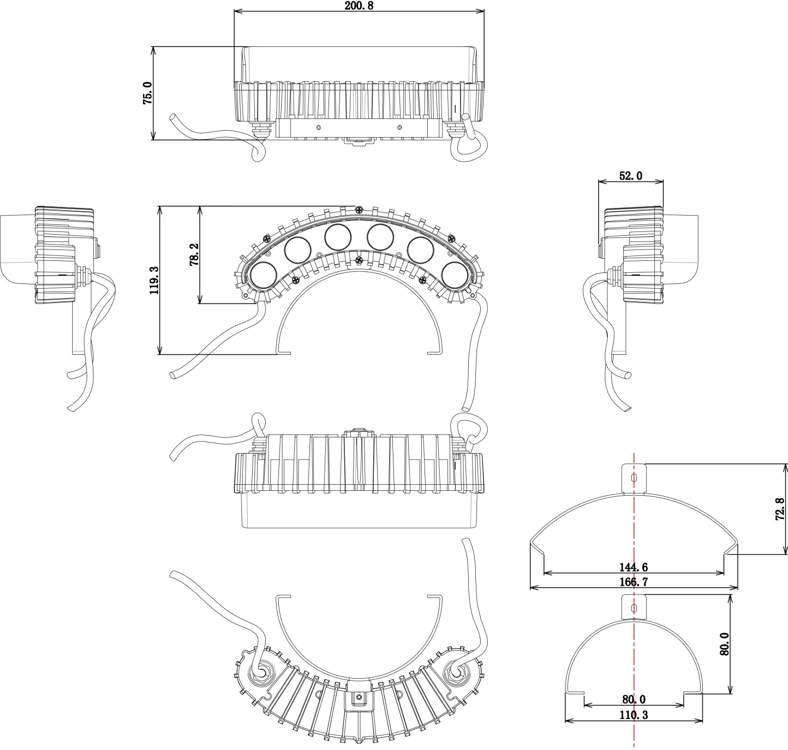

Dimension (mm)

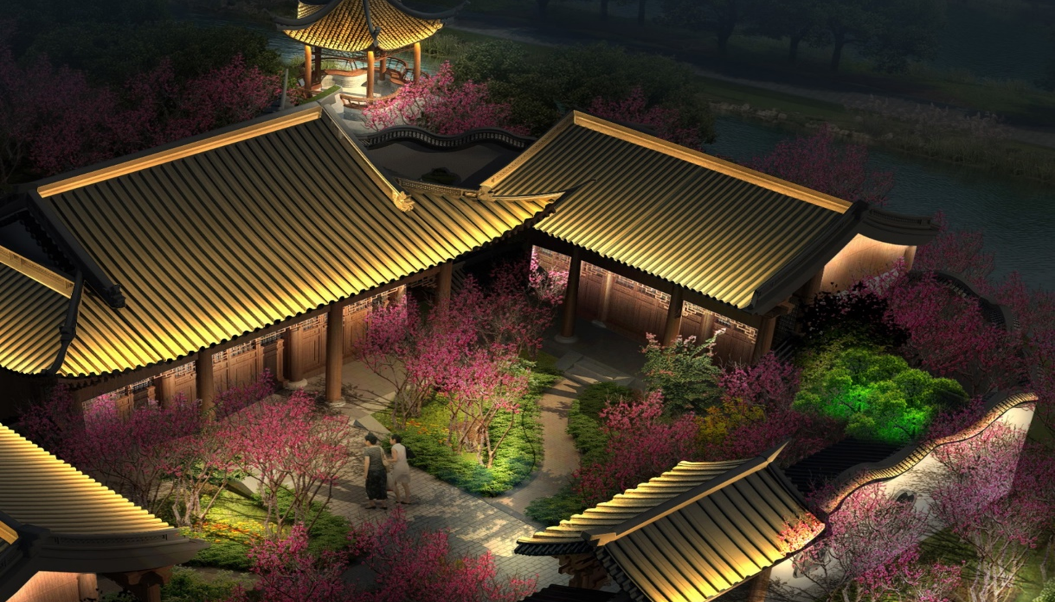

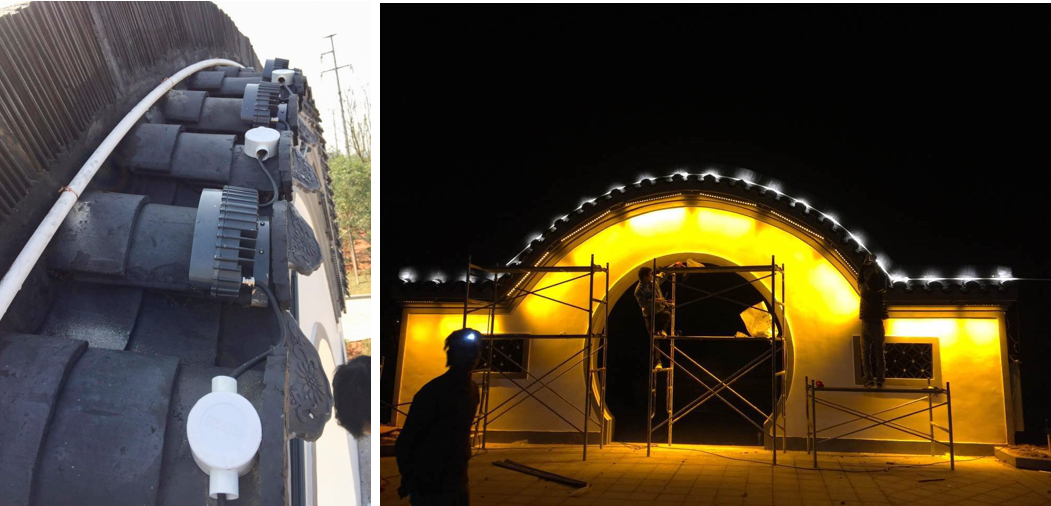

Application scenarios
